1.規格型號和安規認證
MODEL NUMBER AND SAFETY CERTIFICATION
-
品名規格：系列號+額定電流+額定電壓+認證符號
Model Number: Part Number+Rated Current+Rated Voltage+Approvals.
例子[example]:
5CTV 5A 250V 1)系列號 Part Number
2)額定電流 Rated Current
1） 2） 3） 3)額定電壓 Rated Voltage
1-2 額定電流和額定電壓
Rated Current And Voltage
額定電流： 50mA~20A
Rated Current: 50mA~20A
額定電壓:250V AC
Rated Voltage:250V AC
1-3標示Marking
保險絲上需有下列標示
The fuse shall have the following marking:
規格：特性符號+額定電流+額定電壓
Specification:Characteristic Symbol+Rated Voltage
50mA~800mA : _Ma250V 1A~20A:_A250V
Trade mark:The Manufacture’s Logo+Part Number+Approvals
50mA~20A:
注意：對標示字樣大小沒有規定
Note:Size of the markings have not be specified.
2.適用範圍
SCOPE
適用於一般電子設備。Used in electronic equipment.
3.工程圖和結構
OUTLINE DRAWING AND STRUCTURE

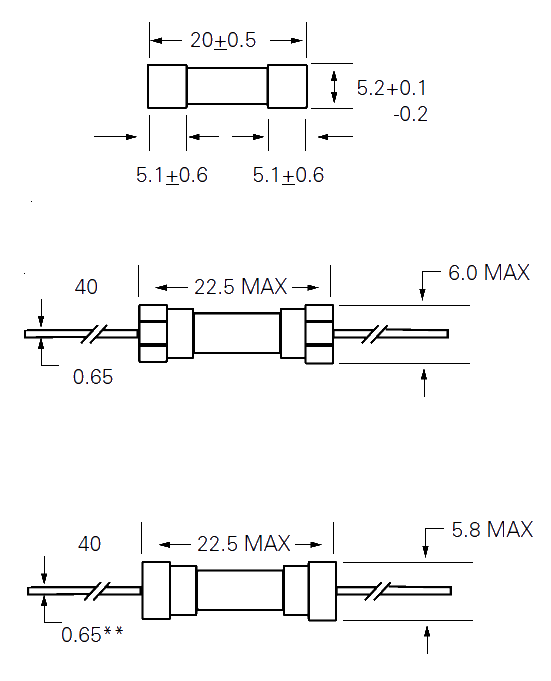

3-1 工程圖（單位：mm）
Outline Drawing and Dimensions(Unit:mm)
3-2結構
Structure
編號
No.
|
元件
Component
|
材質
Material
|
數量
Quantity
|
|
(1)
|
熔絲
Wire
|
合金
Alloy
|
1
|
|
(2)
|
銅帽
Cap
|
黃銅鍍鎳
Brass with mickel plated
|
2
|
|
(3)
|
本體
Body
|
陶瓷管
CERAMIC Tube
|
1
|
|
(4)
|
引線
Lead
|
鍍錫銅線
Tinned Copper wire
|
2
|
|
(5)
|
砂
Sand
|
石英砂
Quartz sand
|
1
|
4.外觀及形狀
APPEARANCES AND CONFIGURATION
4-1外觀：不應有破碎、明顯的汙斑
Appearances:There shall no fragmentation and of remarkable blotch.
4-2形狀：帶腳的保險絲
Configuration:Axial Leaded Fuse.
5.物理特性
PHYSICAL CHARACTERISTIC
5-1 拉力測試
Tensile test
沿端子的軸向施加10N的拉力，持續1分鐘。
Keep pulling the cap of the fuse with 10N at axial direction for 1 min.
6.電氣特性
ELECTRICAL CHARACTERISTICS
熔斷/電流特性：
Pre-Arcing Time/Current Characteristic
a、Breaking capacity（分?jǐn)嗄芰Γ?Time Lag and Fast Acting)
b、Electrical characteristics
Fast Acting（國標、歐標CCC/VDE）
|
% of Ampere Rating
|
Ampere Rating
|
Opening Time
|
|
150%
|
50mA~6.3A
|
60 minutes, Minimum
|
|
8A~20A
|
30 minutes, Minimum
|
|
210%
|
50mA~20A
|
30 minutes, Maximum
|
|
275%
|
50mA~800mA
|
.25 sec. Min.; 80 secs. Max.
|
|
1A~20A
|
.75 sec. Min.; 80 secs. Max.
|
|
400%
|
50mA~800mA
|
.05 sec., Min.; 5 secs. Max.
|
|
1A~20A
|
.150 sec., Min.; 5 secs. Max.
|
|
1000%
|
50mA~20A
|
.010 sec., Min.; .150 sec. Max.
|
美標（UL）
|
Amp Rating(A)
|
100%
|
135%
|
200%
|
|
|
MIN
|
MAX
|
MAX
|
|
50mA~20A
|
60 minutes
|
30 minutes
|
5 sec
|
c、Temperature character
When 100% of rating the temperature rise doesn’t exceed 75℃.
d、Approvals
Amp
Code
|
Amp
Rating
(A)
|
Voltage
Rating
(V)
|
Nominal Cold
Resistance (Ohms)
|
Nominal
Melting
I2t (A2 sec)
|
Maximum
Voltage
Drop (mV)
|
Agency Approvals
|
|
VDE
|
UR
|
CSA
|
CCC
|
|
5CTV-.050
|
0.05
|
250
|
35.9000
|
0.00019
|
10000
|
x
|
x
|
x
|
x
|
|
5CTV-.063
|
0.063
|
250
|
20.4500
|
0.00054
|
8800
|
x
|
x
|
x
|
x
|
|
5CTV-.080
|
0.08
|
250
|
17.8850
|
0.00084
|
7600
|
x
|
x
|
x
|
x
|
|
5CTV-.100
|
0.1
|
250
|
15.7925
|
0.00450
|
2000
|
x
|
x
|
x
|
x
|
|
5CTV-.125
|
0.125
|
250
|
11.4455
|
0.0330
|
2600
|
x
|
x
|
x
|
x
|
|
5CTV-.160
|
0.16
|
250
|
7.1000
|
0.0465
|
2400
|
x
|
x
|
x
|
x
|
|
5CTV-.200
|
0.2
|
250
|
1.8400
|
0.340
|
2100
|
x
|
x
|
x
|
x
|
|
5CTV-.250
|
0.25
|
250
|
1.2400
|
0.545
|
1500
|
x
|
x
|
x
|
x
|
|
5CTV-.315
|
0.315
|
250
|
0.8800
|
0.975
|
1100
|
x
|
x
|
x
|
x
|
|
5CTV-.400
|
0.4
|
250
|
0.5825
|
1.325
|
1000
|
x
|
x
|
x
|
x
|
|
5CTV-.500
|
0.5
|
250
|
1.1675
|
0.420
|
850
|
x
|
x
|
x
|
x
|
|
5CF-.630
|
0.63
|
250
|
0.7200
|
0.635
|
650
|
x
|
x
|
x
|
x
|
|
5CTV-.800
|
0.8
|
250
|
0.4675
|
0.975
|
500
|
x
|
x
|
x
|
x
|
|
5CTV-001.
|
1
|
250
|
0.1515
|
1.520
|
350
|
x
|
x
|
x
|
x
|
|
5CTV-1.25
|
1.25
|
250
|
0.1074
|
3.200
|
300
|
x
|
x
|
x
|
x
|
|
5CTV-01.6
|
1.6
|
250
|
0.0707
|
6.830
|
200
|
x
|
x
|
x
|
x
|
|
5CTV-002.
|
2
|
250
|
0.0566
|
11.680
|
190
|
x
|
x
|
x
|
x
|
|
5CTV-02.5
|
2.5
|
250
|
0.0386
|
22.290
|
180
|
x
|
x
|
x
|
x
|
|
5CTV-3.15
|
3.15
|
250
|
0.0283
|
43.255
|
140
|
x
|
x
|
x
|
x
|
|
5CTV-004.
|
4
|
250
|
0.0185
|
46.960
|
100
|
x
|
x
|
x
|
x
|
|
5CTV-005.
|
5
|
250
|
0.0153
|
66.095
|
100
|
x
|
x
|
x
|
x
|
|
5CTV-06.3
|
6.3
|
250
|
0.0108
|
128.750
|
100
|
x
|
x
|
x
|
x
|
|
5CTV-008.
|
8
|
250
|
0.0092
|
209.880
|
100
|
x
|
x
|
x
|
x
|
|
5CTV-010.
|
10
|
250
|
0.0066
|
333.565
|
100
|
x
|
x
|
x
|
x*
|
|
5CTV-12.
|
12
|
250
|
0.0061
|
515.500
|
100
|
x
|
x
|
x
|
x
|
|
5CTV-015.
|
15
|
250
|
0.0033
|
1237.0
|
|
x
|
x
|
x
|
x
|
|
5CTV-016.
|
16
|
250
|
0.0031
|
|
|
|
|
|
|
|
5CTV-020.
|
20
|
250
|
0.0023
|
|
|
|
|
|
|

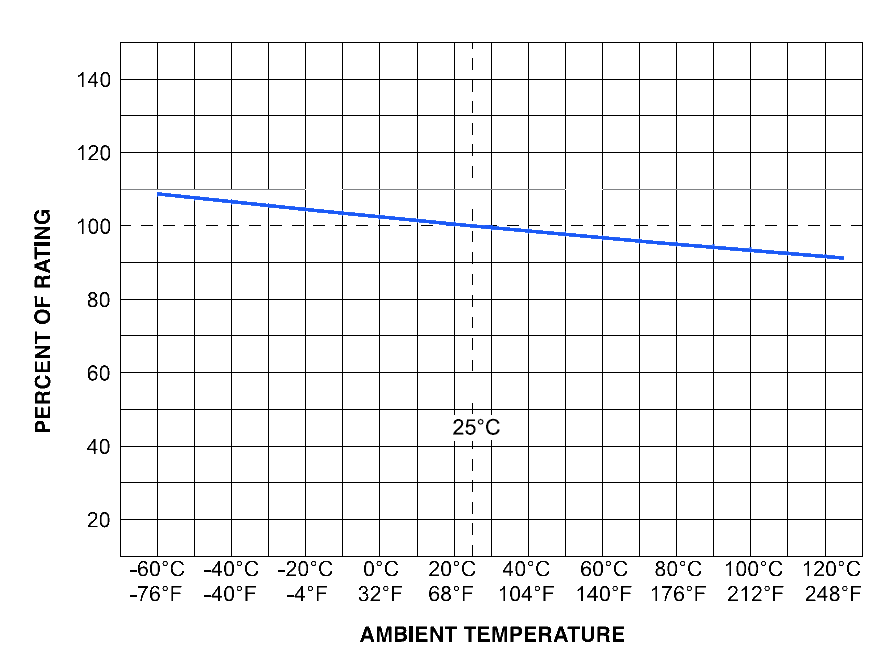

Temperature Rerating Curve
Average Time Current Curves

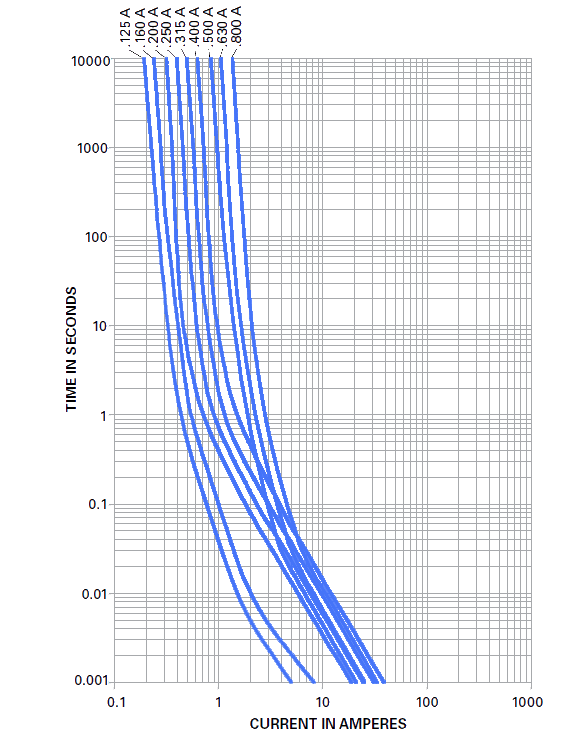

T-C Curves for 125mA to 800mA
T-C Curves for 1A to 20A
7.環境特性
ENVIRONMENTAL SPECIFICATION
7-1 操作溫度範圍：-5℃~60℃
Operating Temperature: -5℃~60℃
7-2 保存條件
Storage Conditions
溫度：+10℃~60℃
Temperature: +10℃~60℃
在相對濕度≤75%下平均可存放3年
On average, It can be stored below the relative humidity or 75% for 3 years.
在非露天下，相對濕度為95%下最多可存放30天。
Without dew, It can be kept under humidity of 95% for 30 days.
8.焊接條件
SOLDERING PAAMETERS
8-1波峰焊
Wave Solder
焊接溫度：260±5℃
Soldering Temperature:260±5℃
焊接時間：4 Sec. Max.
Soldering Time:4 Sec.Max.
8-2手工焊錫
Manual Solder
焊接溫度：350±5℃
Soldering Temperature: 350±5℃
焊接時間：3 Sec. Max.
Soldering Time: 3 Sec. Max.
9.其他使用注意事項
OTHER NOTICE IN USING
如果需在保險絲上加熱縮套管，烘烤溫度與時間需參照以下規定
If heat shrink tubing was needed,the roast temperature and time should be refer to the following.
設定烘烤溫度：不大於150℃ 烘烤時間：50s Max.
The temperature should be sel under 150℃,roast time:50s Max.
